Optek AL118 Lapometer
SKU: AL118
Avail: Made to Order
Mfg: Optek
Contact us for pricing
Description

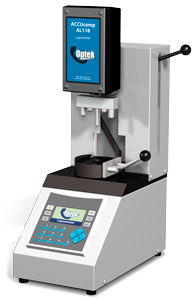

Featuring advanced transducer technology, the Optek AL118 Lapometer is a precision, microprocessor-controlled instrument. The AL118 uses a rotating base to gauge both base and cross curves, ranging from +25 to -12 diopters. With the optional adapter, the AL118 can also be used to gauge generated curves on a blocked lens.
Key Features
- Powerful microprocessor instantly calculates and displays curve
information:
- True sag value displayed in mm
- True and compensated (stamped) curves displayed to in diopter
- Radius of curvature displayed in mm
- Rotating base allows gauging of both base and cross curves
- Integrated large and small spaced ball points allow precise gauging through the widest curve range
- User programmable indices of refraction and pad thicknesses allow extreme versatility
- Advanced transducer technology
- High contrast multiline LCD display
- Included calibration standards allow quick and precise calibration to compensate for room temperature changes and other variables
- Heavy duty aluminum and steel construction provides rugged durability and an extremely stable platform
Specifications
- Size: 9.2" W • 10.75" D • 17.75" H
- Weight: 18 lbs
- Power: Transformer - 120V-240V, 0.1A, 50/60Hz, 1φ to 24V
