Dia FD-80 3-Axis Frame Tracer

SKU: FD-80
Avail: 5 Days
Mfg: Dia Optical

This item is no longer available. Alternative items may be listed below.

Description

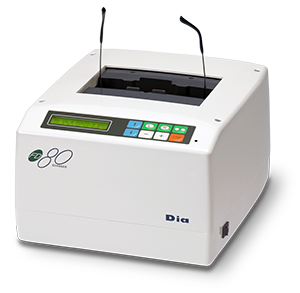

The Dia FD-80 is a state-of-the-art, 3-axis frame tracer. Automatic operation scans frames (both eyes), lenses, and patterns.

Key Features

• Loading a frame is simple. Place the frame between the clamps and press a trace button. The rest is automatic! Both eyewires are traced in succession.
• Tracing a lens or pattern is as simple as placing a block anywhere on a lens or pattern. The FD-80 will automatically select the lens tracing probe.
• Creates perfectly boxed lens-shape data automatically or optionally creates decentered lens-shape data with patient Rx information
• Variable tracing speeds
• Traces frames as small as 18mm high
• Stores 100 jobs (100 pairs of lens-shape data)
• Serial interface capability with VCA-compliant host Rx software

Specifications

• Lens materials: CR-39, polycarbonate, high index plastic, Trivex, and mineral glass
• Size: 11.02" W • 12.56" D • 7.09" H
• Weight: 16 lbs
• Power: 24V DC, 20W (100-230V AC / 24V DC adapter attached)
